Aluminum 3D Printing for Hydraulic Manifolds, Pump Housings and Fluid Control Components
Common Challenges in Conventional Hydraulic Component Manufacturing
Cross-drilled channels create pressure loss
Traditional machining often creates sharp turns and flow restrictions.
Multiple plugs and joints increase leakage risk
Assembly interfaces can become failure points under high pressure.
Casting molds slow down iteration
Tooling cost and lead time make small batches and design updates expensive.
Weight and space constraints limit system performance
Complex hydraulic systems need compact, lightweight components.
Proven Applications for Aluminum 3D Printed Hydraulic Components
Complex Volute / Pump Housing
Designed for optimized fluid dynamics and pressure containment in fluid management systems.
Core Advantages
- Material: AlSi10Mg
- Industry: Chemical Processing, Aerospace, High–Performance Automotive
- Internal Flow Optimization: Integrates complex internal volute geometries to reduce fluid turbulence and pressure drops.
- Part Consolidation: Replaces multi–part assemblies, removing the need for gaskets and improving structural integrity.
- Tooling–Free Production: Eliminates the need for casting molds, supporting rapid design iterations and on–demand production.

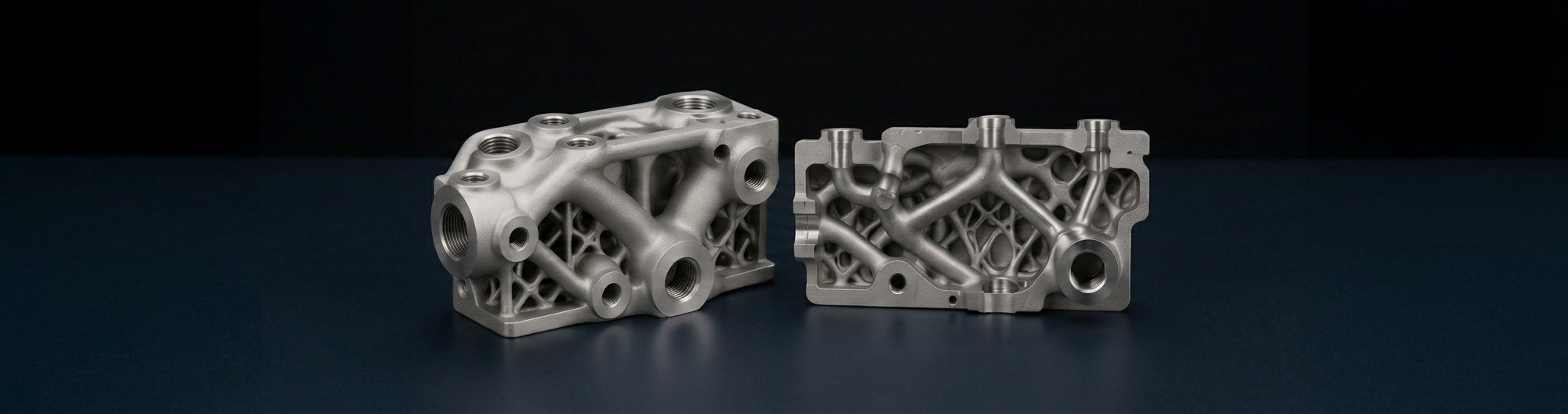

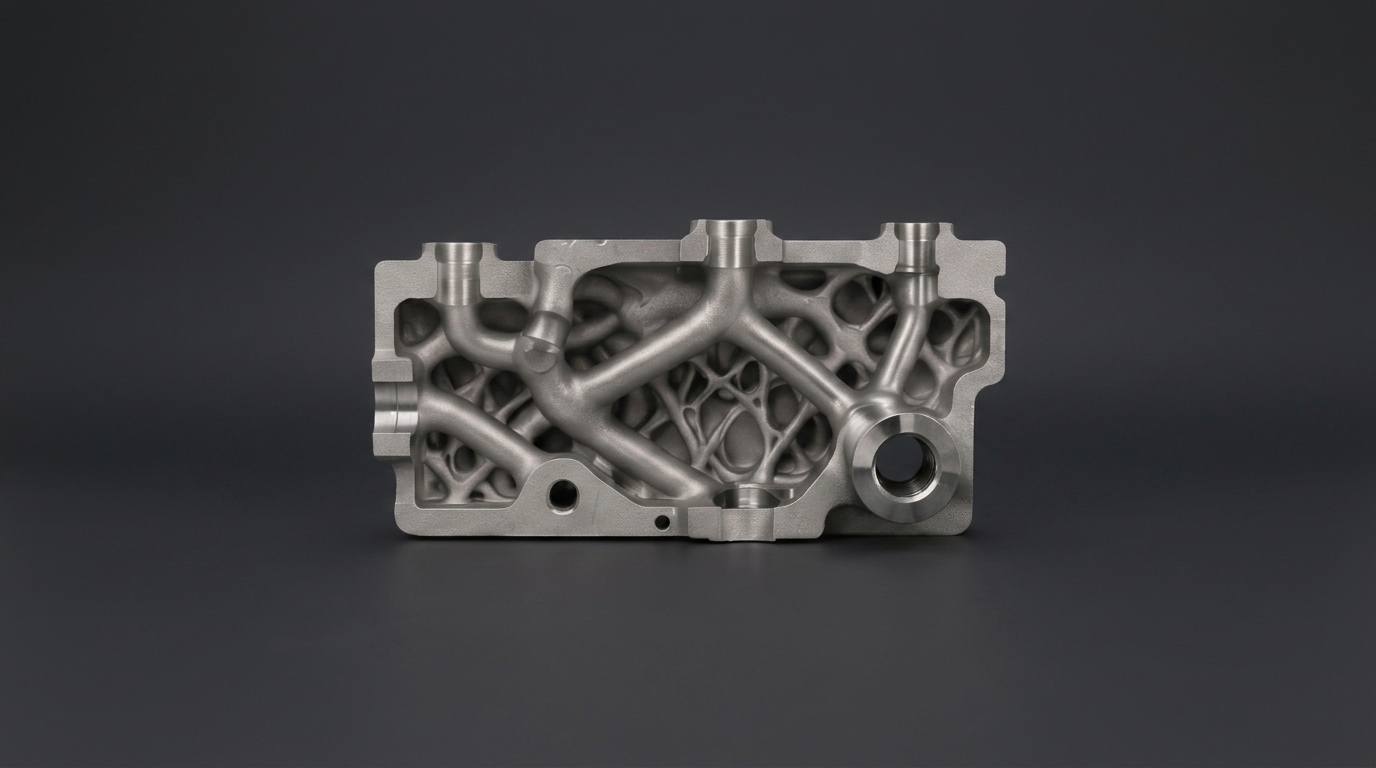

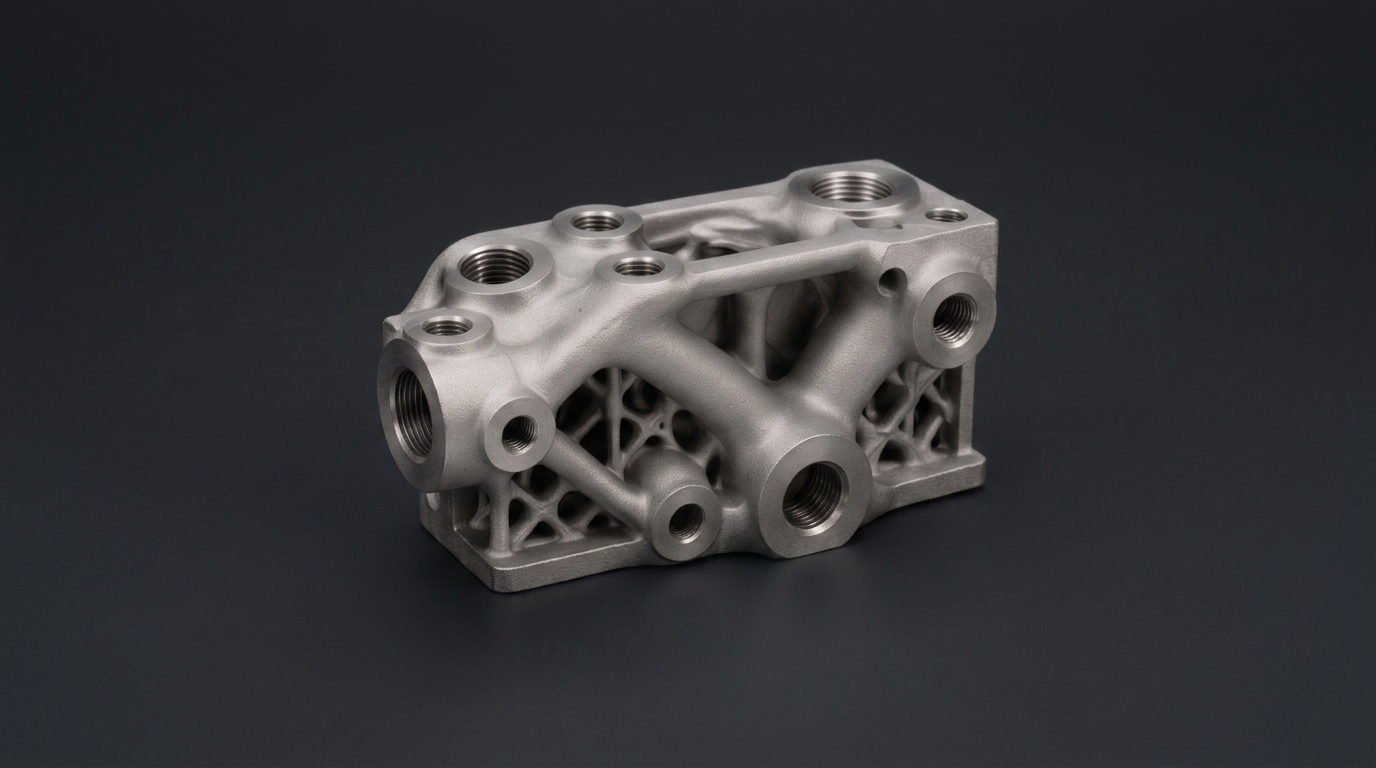

Hydraulic Manifolds
Engineered for high-pressure fluid routing, precise control, and extreme space optimization.
Core Advantages
- Material: AlSi10Mg
- Industry: Aerospace, Heavy Machinery, Robotics, High–Performance Automotive
- Internal Flow Optimization: Replaces right–angle cross–drilled holes with smooth, curved channels to reduce pressure drop.
- Zero–Leak Monolithic Design: Eliminates process plugs, eradicating high–pressure leak paths.
- Extreme Lightweighting: Topology–optimized to reduce weight without compromising structural strength.
Closed Impellers
Designed for efficient fluid handling and optimized rotational inertia.
Core Advantages
- Material: AlSi10Mg (Aluminum Alloy)
- Industry: Automotive Turbochargers, Industrial HVAC, Fluid Compressors
- Monolithic Fabrication : Single–piece construction removes the need for multi–part machining and brazing, reducing assembly time and joint failure risks.
- Internal Flow Optimization: Supports complex, overlapping blade geometries to improve aerodynamic efficiency and flow volume.
- Low Inertia: The lightweight aluminum structure reduces rotational mass, improving spool–up times and dynamic responsiveness.

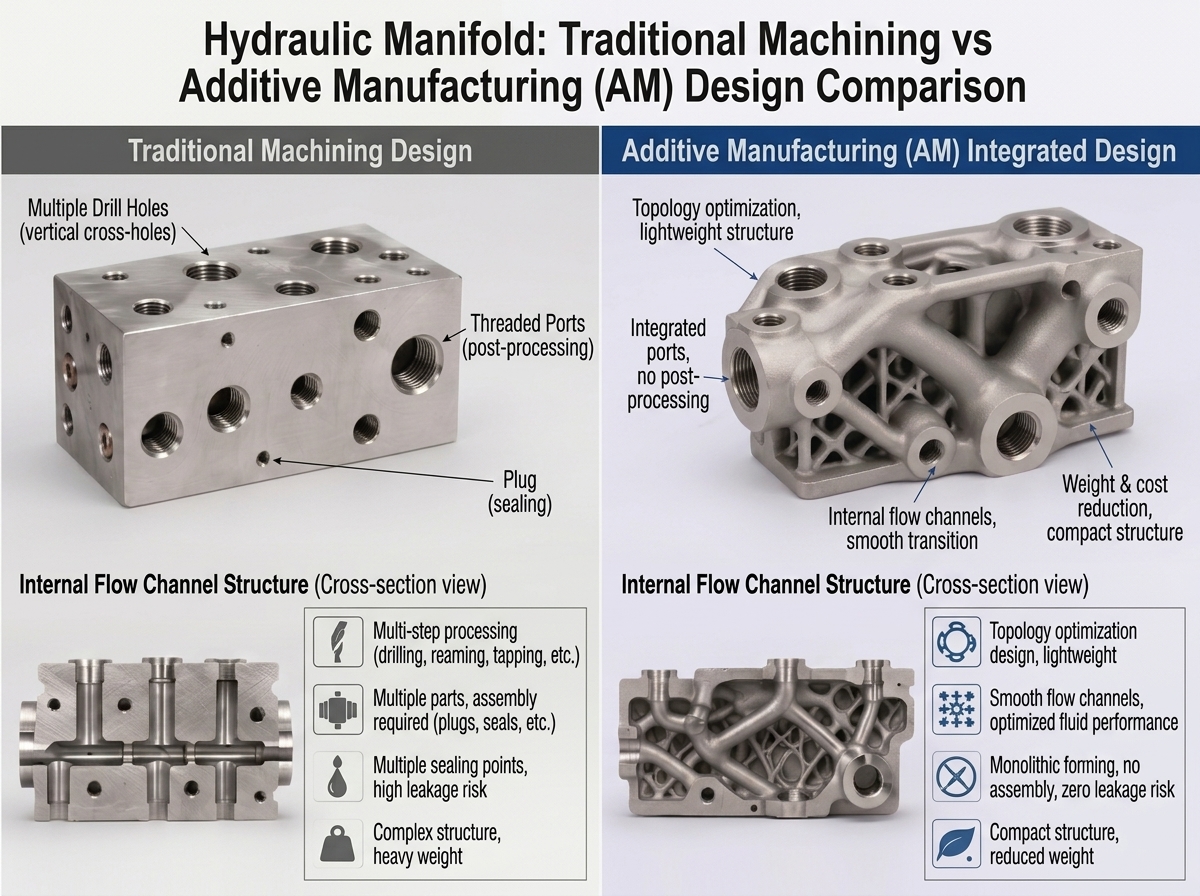

Why Use Aluminum Additive Manufacturing for Hydraulic Components?
Smooth Internal Flow Paths
Replace right-angle drilled passages with curved internal channels to reduce turbulence and pressure drop.
Monolithic Leak-Free Structure
Consolidate multi-part assemblies into one printed component and reduce plugs, seals, and joint failure points.
Lightweight Hydraulic Design
Use topology optimization and hollow structures to reduce component weight while maintaining strength.
Fast Prototyping Without Tooling
Produce complex pump housings, manifolds, and fluid control parts without casting molds.
Materials for for Hydraulic Manifolds, Pump Housings and Fluid Control Components

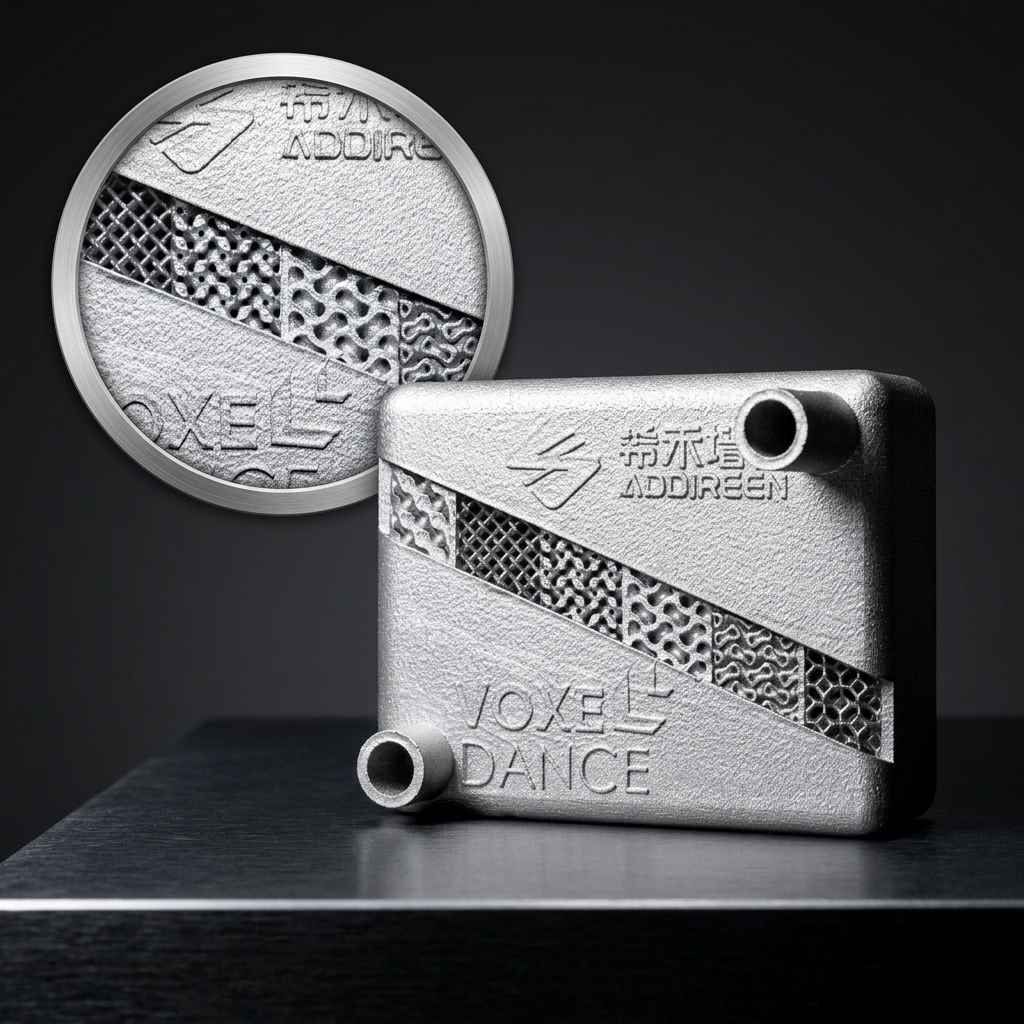

AlSi10Mg

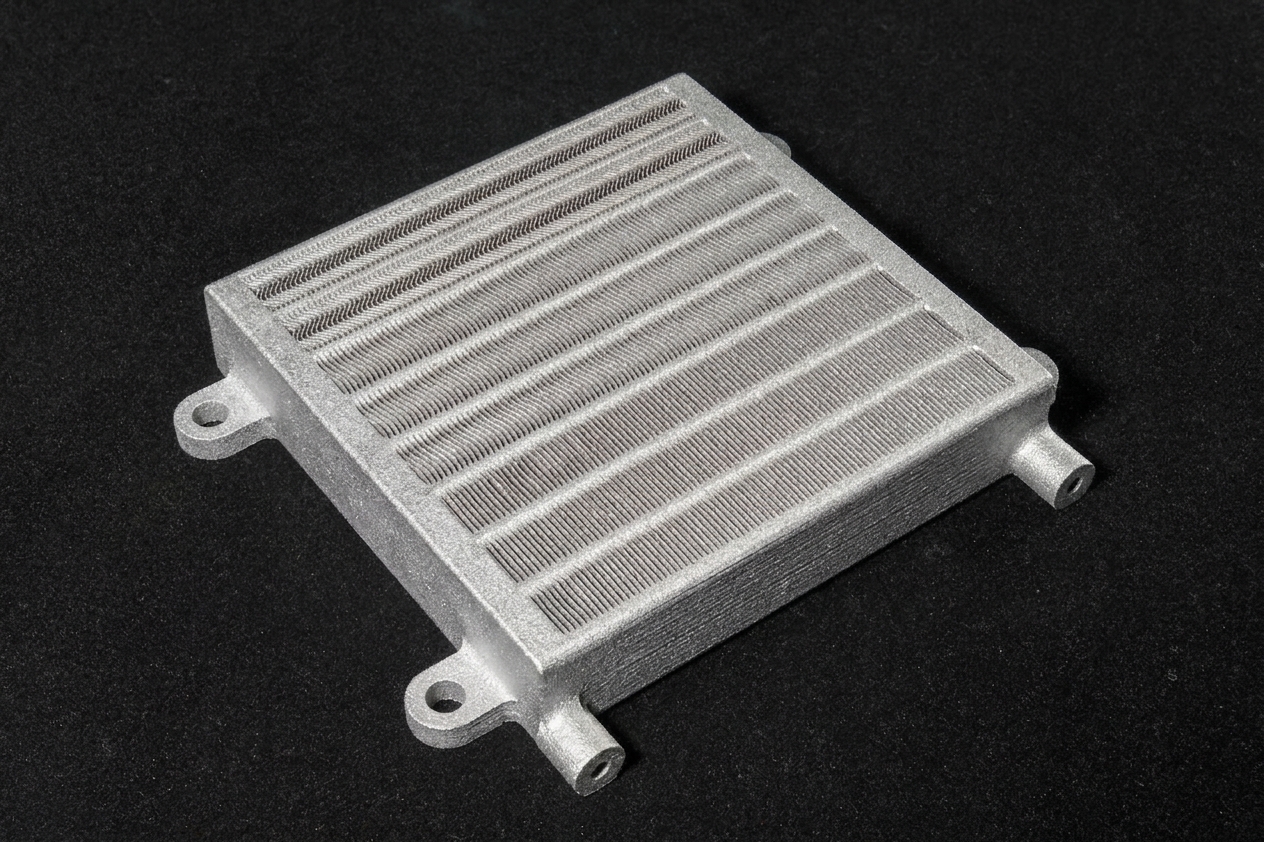

Lightweight aluminum alloy for EV heat exchangers, cooling channels, housings, and structural mobility components.
316L Stainless Steel
Custom stainless steel 316L 3D printing service for corrosion-resistant, complex and functional metal parts. Upload CAD for RFQ or request a design review for manifolds, brackets, tooling, medical, marine and industrial applications.
Manufacturing Capabilities & Trust: Industrial Aluminum AM for Hydraulic Systems

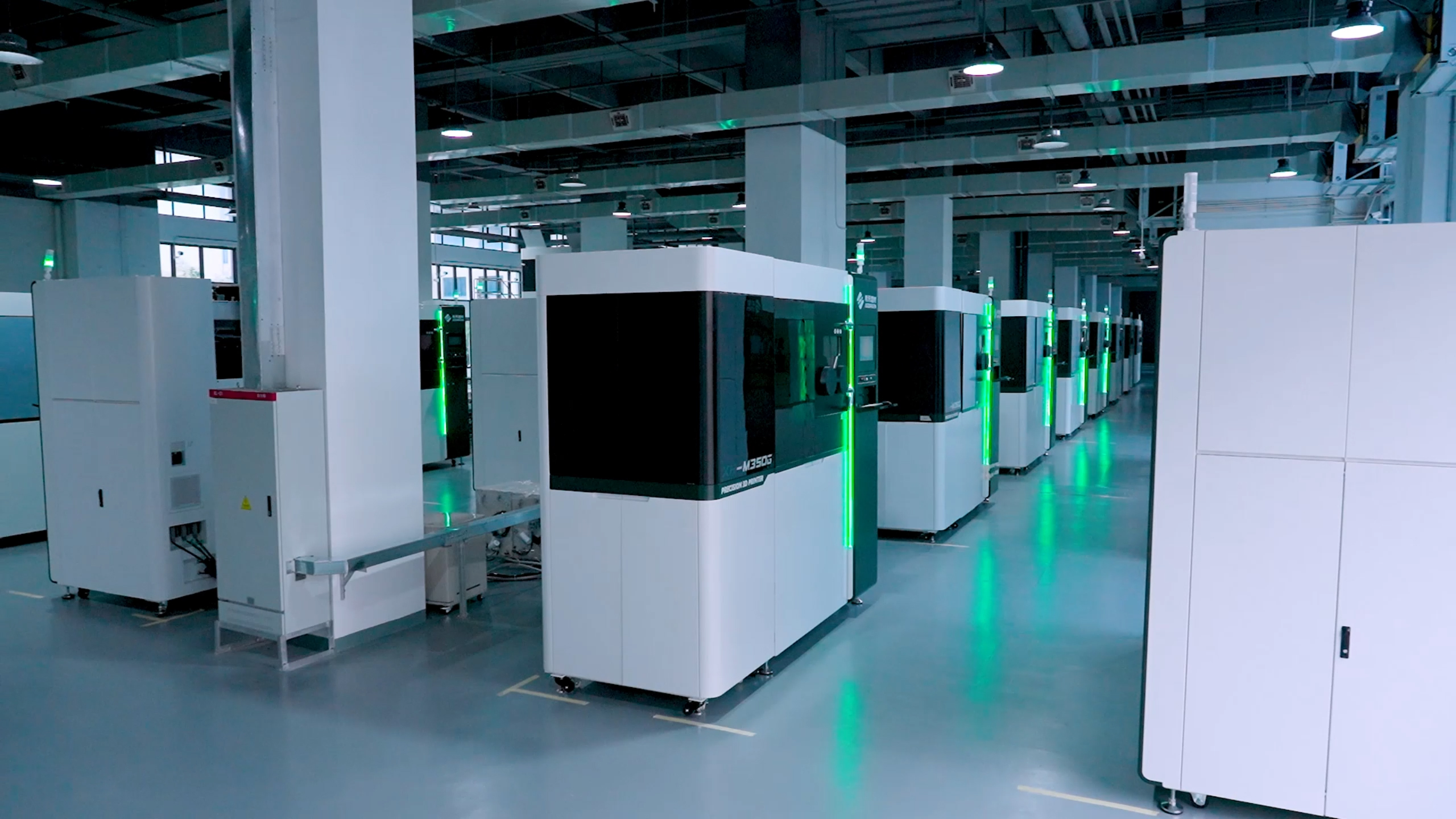

Industrial-Scale AM Capability
Equipped with over 100 metal 3D printing systems , we eliminate production bottlenecks and guarantee rapid turnaround times for both complex prototypes and scalable low-volume production.
End-to-End Turnkey Solution
We simplify your global supply chain by handling everything under one roof, from advanced metal printing to precision post-processing and rigorous quality assurance.
Expert DfAM Engineering Guidance
Our in-house additive manufacturing experts give guidance with your team to optimize your CAD models for printability, extreme weight reduction, and optimal fluid dynamics before production begins.

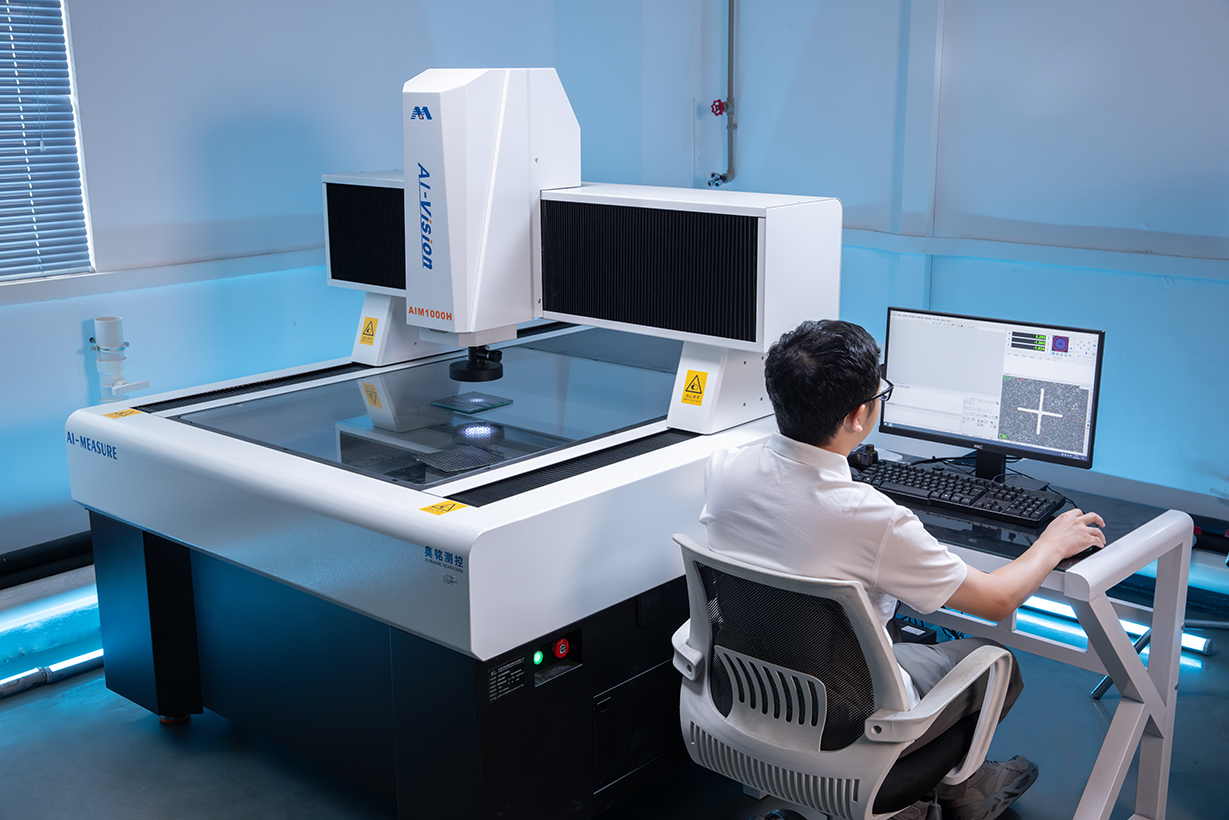

Rigorous Quality Assurance

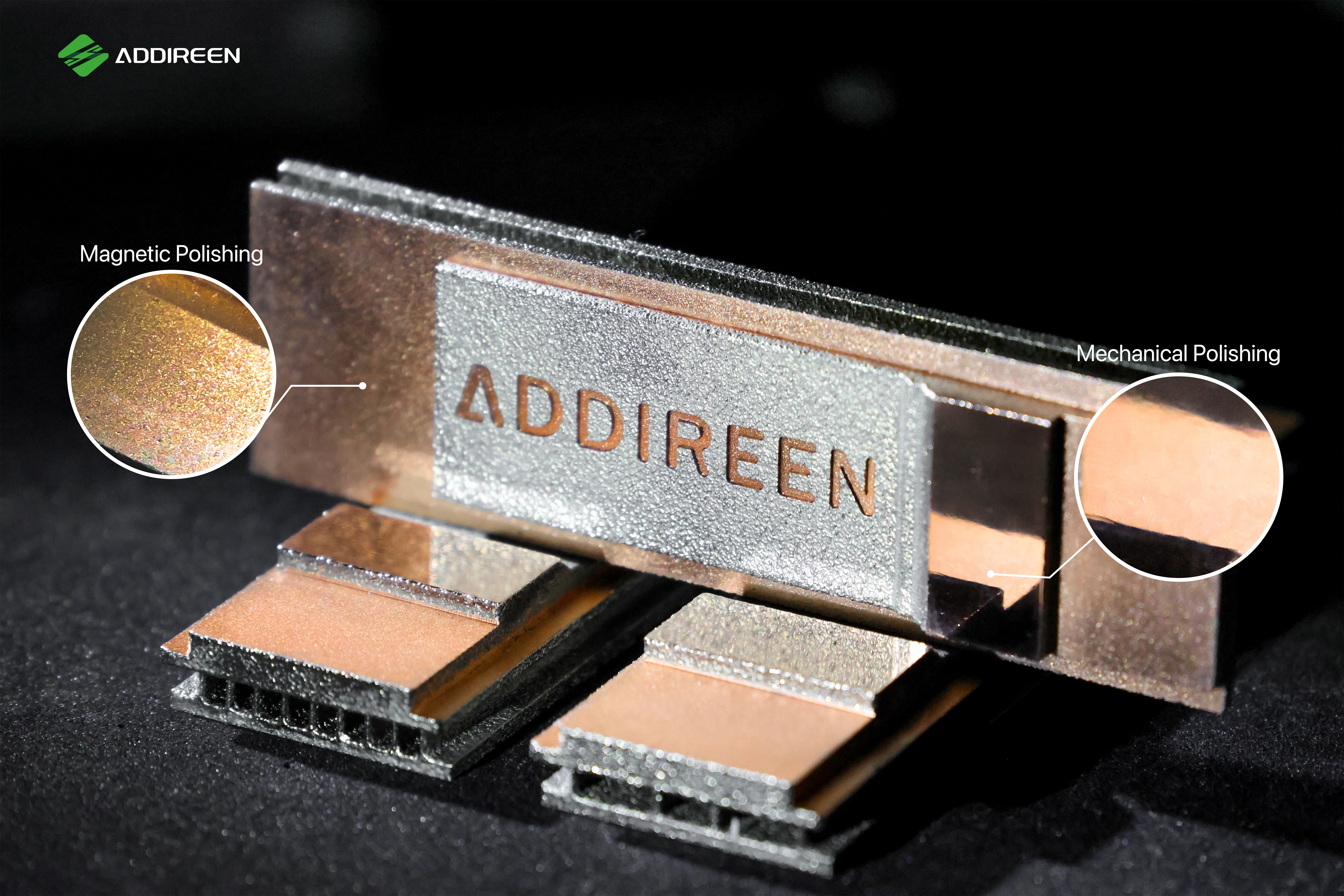

We guarantee monolithic, leak-free performance and flawless internal structures through comprehensive pressure testing , strict surface roughness (Ra) control and beyond.
FAQ: Aluminum 3D Printing for Hydraulic Components
Find answers to common questions about our green laser metal 3D printing technology, materials, and services
Start Your Aluminum Hydraulic 3D Printing Project
Upload your manifold, pump housing, impeller, or fluid control component design. Our engineers will review printability, material, post-processing, and quote requirements.
