Smart Mobility
Application Cases

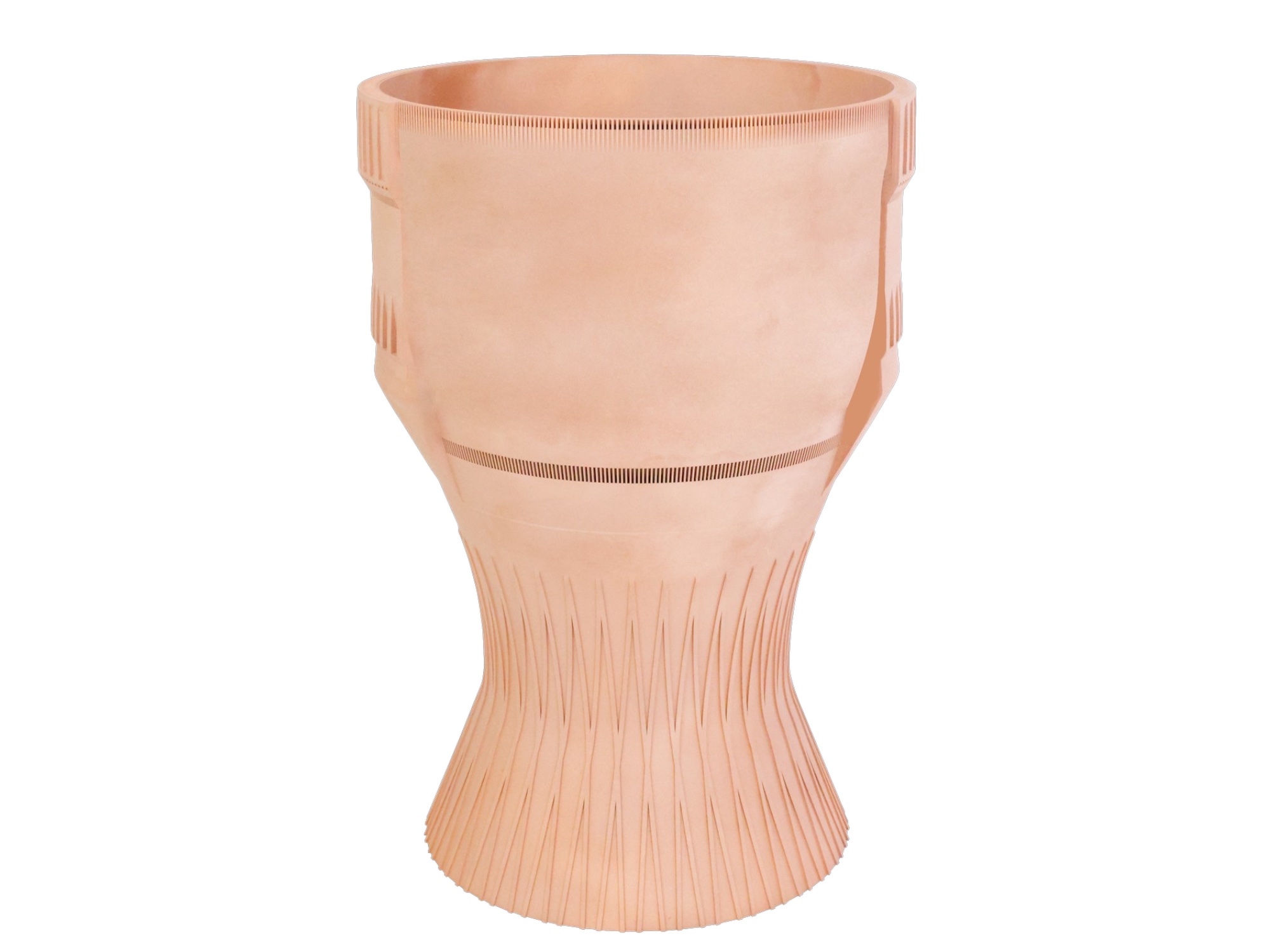

Thrust Chamber
Designed to withstand extreme thermal loads in rocket propulsion using integrated cooling channels.
Core Advantages
- Material: CuCrZr
- Industry: Aerospace
- Core Design: Features complex conformal cooling channels printed directly within the thin walls of the chamber liner, impossible to achieve via traditional machining.
- Thermal Management: Utilizes the high thermal conductivity of copper alloys to rapidly transfer heat from the combustion zone to the fuel flowing through the channels (regenerative cooling).
- Efficiency: Maximizes heat exchange surface area while reducing part count from dozens of brazed tubes to a single monolithic component.

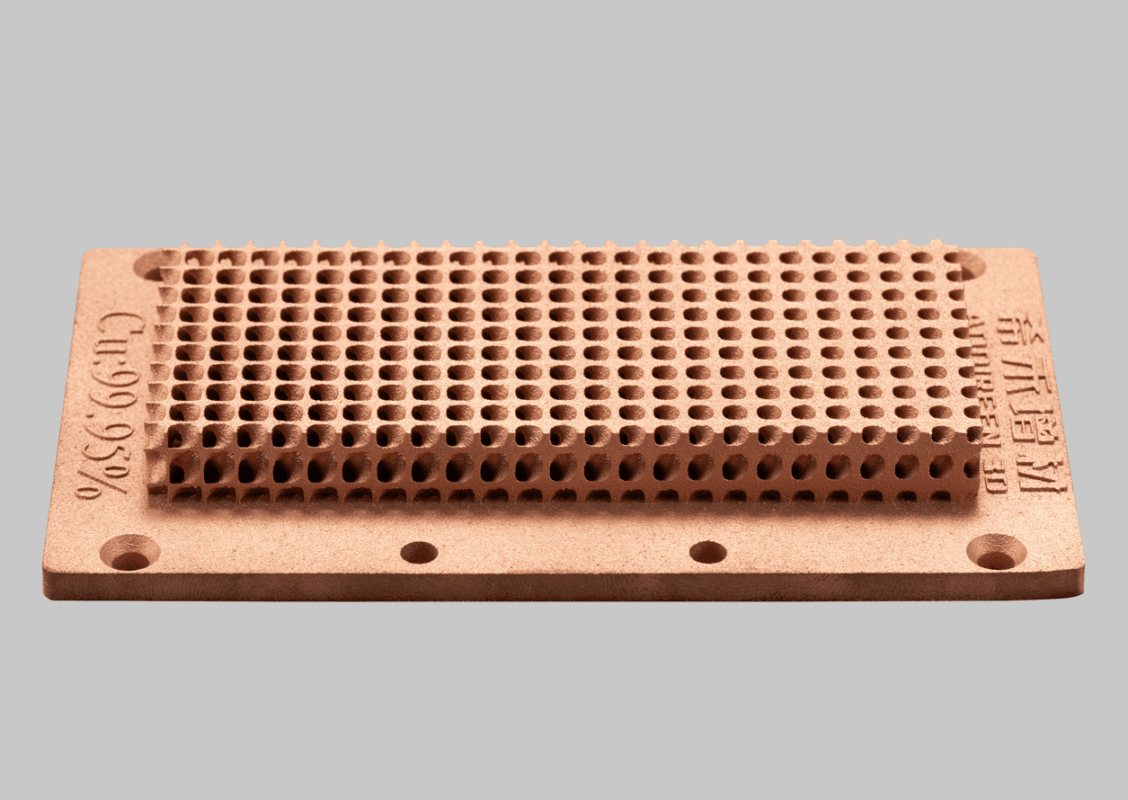

IGBT Heat Sink
Designed for IGBT power modules in EVs or industrial controls, breaking the limits of traditional cold-forged pin fins.
Core Advantages
- Industry: Automotive & EV
- Background: Traditional Pin Fin technology has hit a thermal bottleneck.
- Micro‑structure Design: Bottom features Irregular concave and convex textures. Surface covered with Conical columns with spiral micro‑structures, impossible with cold forging. Added Horizontal square strips for turbulence induction.
- Results: Thermal efficiency improved by 30%‑40% within the same installation space.

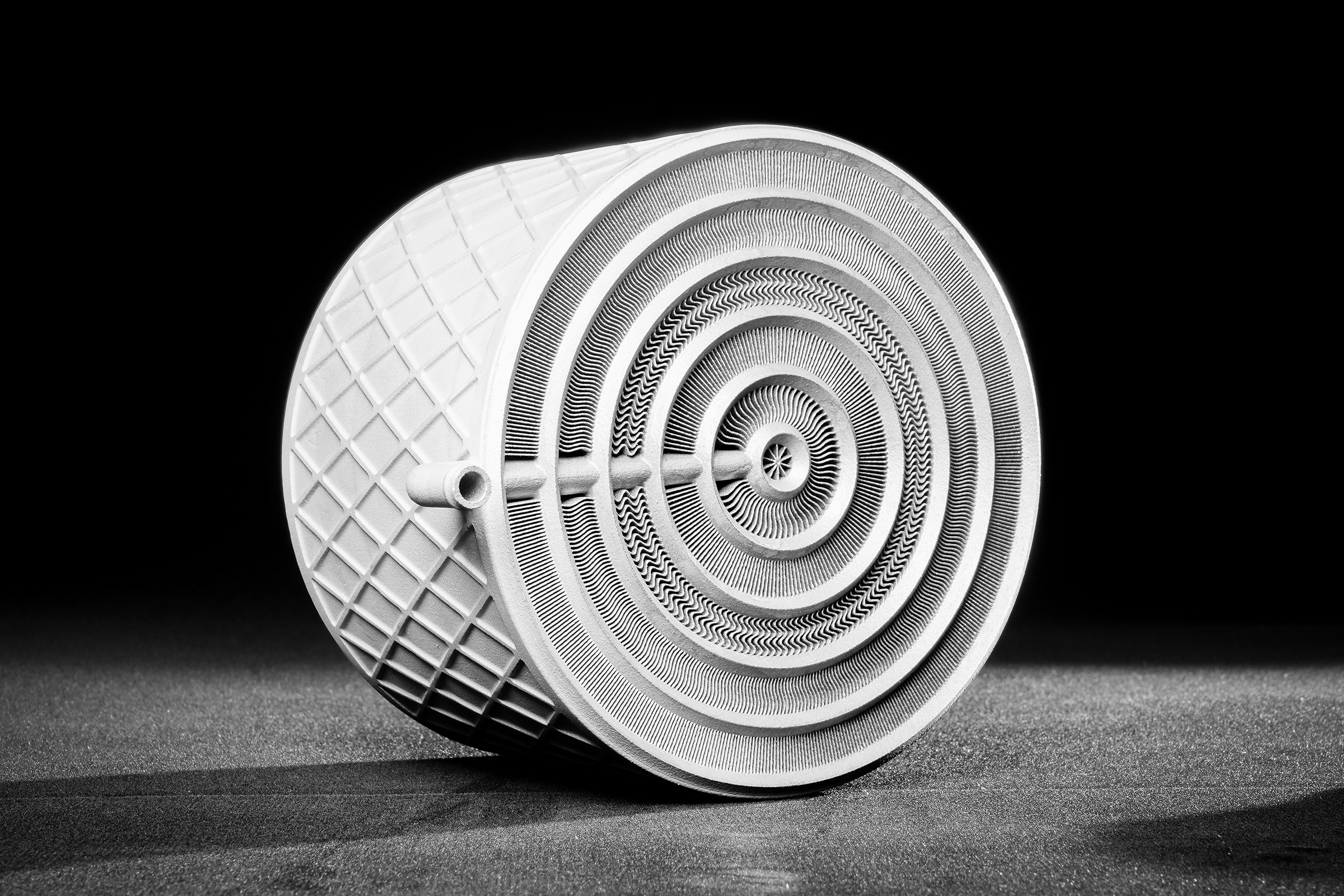

Integrated Heat Exchanger
Designed for high-efficiency EV battery & motor cooling, eliminating assembly risks.
Core Advantages
- Material: AlSi10Mg or Pure Copper
- Industry: Automotive & EV
- Core Design: Utilizes TPMS (Triply Periodic Minimal Surface) to maximize the heat transfer surface area within a confined space, far exceeding traditional fin capabilities.
- Thermal Dynamics: The complex internal channels create turbulent flow, which breaks the thermal boundary layer and significantly enhances the heat rejection rate for battery packs.
- Integrated Design: Consolidates multiple stamped parts and seals into a single monolithic unit, ensuring safety for high‑voltage systems.
Transmission & Gearbox Components
Lightweight housings featuring integrated complex oil circuits for superior lubrication.
Core Advantages
- Material: AlSi10Mg or Pure Copper
- Industry: Automotive & EV
- Core Design: Embeds conformal oil passages directly inside the housing walls. These curved channels guide oil smoothly around corners, impossible to achieve with straight‑line drilling.
- Weight Reduction: Applies topology optimization to remove material from non‑load‑bearing areas, reducing housing weight while maintaining structural stiffness.
- Performance: Improves lubrication efficiency by optimizing flow paths to critical gears and bearings, reducing pressure drop and pump energy consumption.

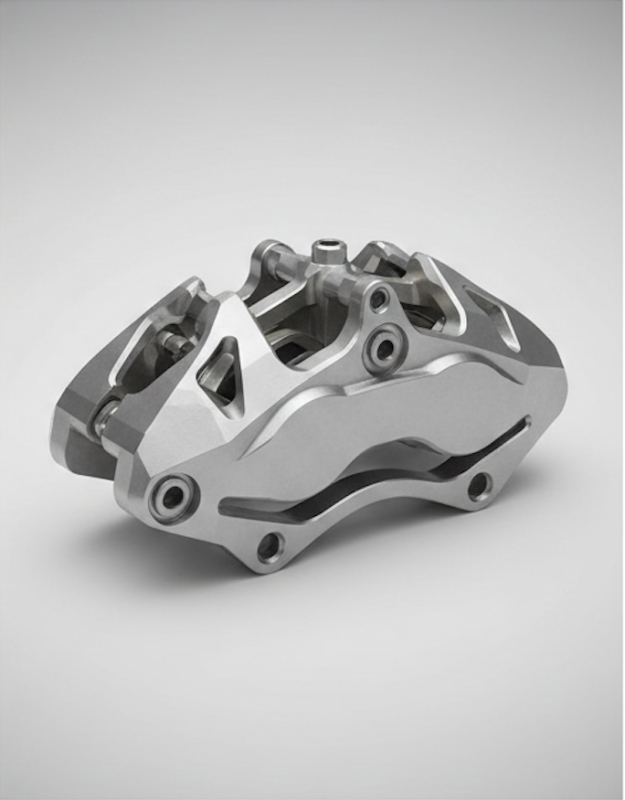

Brake Calipers
Extreme lightweighting for unsprung mass reduction in racing.
Core Advantages
- Material: Ti6Al4V or AlSi10Mg
- Industry: Racing
- Core Design: Uses bionic topology optimization to remove all excess material while maintaining maximum stiffness against caliper expansion.
- Fluid Dynamics: Integrates internal hydraulic fluid channels directly into the caliper body, eliminating external piping and potential damage points.
- Performance: Improves braking response and cooling (via air ducts printed into the structure) while reducing wheel assembly weight.

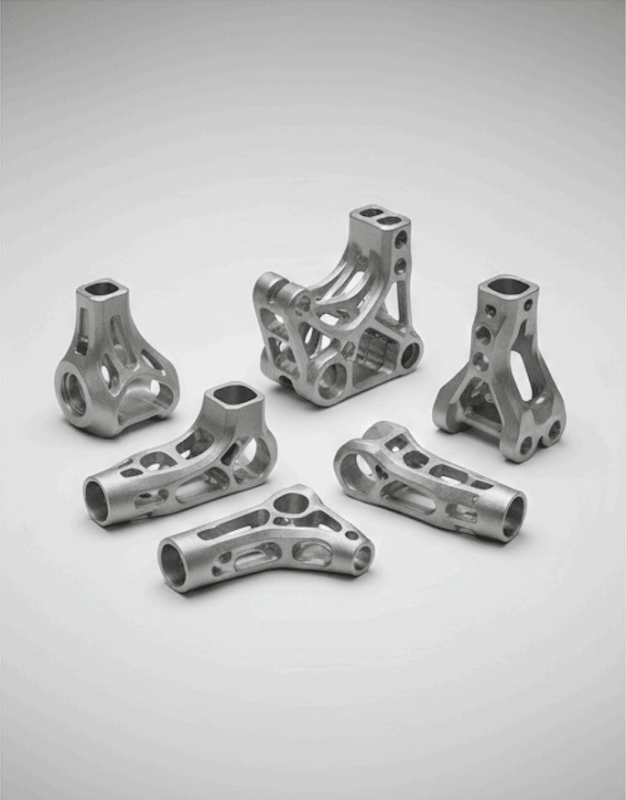

Topology-Optimized Frame Nodes
Customized structural nodes (Head Tubes, Dropouts) for bespoke bicycle frames.
Core Advantages
- Material: Ti6Al4V or AlSi10Mg
- Industry: Cycling & Micromobility
- Core Design: Generates material distribution based strictly on load paths.
- Customization: Allows for adjustments in geometry (angles, dimensions) without the need for expensive molds, enabling perfect rider fit.
- Workflow: Simplifies frame building by providing precise "lugs" that connect standard tubes, reducing welding distortion.
Instant Quote Demo
See how fast and simple it is to get a quote for 3D printing using the Addireen Instant Quoting Engine.
Download our expert design guides to access tips
Materials
Pure Copper
Pure Copper printed via Green Laser technology offers exceptional electrical and thermal conductivity. It overcomes the high reflectivity challenges of traditional lasers, delivering high-density parts ideal for heat exchangers, induction coils, and EV components.
CuSn10
CuSn10 is a copper-tin alloy known for its high strength, elasticity, and excellent corrosion resistance. It is widely used in marine applications, artistic jewelry, and functional prototypes requiring durability and moderate conductivity.
CuCrZr
CuCrZr is a heat-treatable copper alloy that retains high strength and conductivity at elevated temperatures. It is the preferred material for rocket engine thrust chambers and high-performance heat sinks requiring thermal stability.
AlSi10Mg
AlSi10Mg is a lightweight aluminum alloy with excellent strength-to-weight ratio and thermal properties. It is widely used for complex geometries in automotive and aerospace structural parts.
6061
Al 6061 offers superior machinability and mechanical properties compared to standard casting alloys. Renowned for its excellent anodizing and coloring capabilities, it is ideal for structural parts requiring precision and premium surface finishes.
Ti6Al4V
Ti6Al4V is the benchmark titanium alloy for additive manufacturing, valued for its exceptional strength-to-weight ratio, biocompatibility, and corrosion resistance. Essential for aerospace components and medical implants.
Printing Advantages in Thermal Management Applications
Unlocking complex flow designs with breakthrough additive technology, defining the next generation of efficient, compact, and leak-proof thermal systems.
Extreme Lightweight Engineering
Topology optimization and lattice structures remove excess mass without compromising strength. This boosts aerospace payload and EV range.
Aerodynamic & Fluid Optimization
Redefines efficiency by minimizing air drag and optimizing internal fluid paths. This enables complex geometries that enhance racing downforce and improve fuel/hydraulic flow in aerospace systems.
Integrated Assembly
Consolidates multi-part assemblies into single monolithic units. This eliminates welding seams, significantly reducing failure risks for structural systems.
Agile R&D & Customization
Accelerates innovation with tool-free production, shortening verification cycles from months to days. This enables rapid iteration for racing aerodynamics and customization for bicycle nodes.
