Ti6Al4V
The benchmark AM titanium alloy. Combines exceptional strength-to-weight, biocompatibility, and corrosion resistance for aerospace and medical applications.
Material Parameters & Mechanical Properties
Key Applications
Advanced Robotics & Exoskeletons
For high-performance robotics, our Ti6Al4V printing perfectly balances extreme impact resistance with minimized weight. We manufacture hollow, bionic structures like topology-optimized calf frames, eliminating the long lead times of traditional titanium machining to accelerate dynamic gait testing.
Premium Custom & Boutique Manufacturing
Unlocking absolute design freedom for premium brands, we bring complex generative and organic aesthetics to life with zero tooling costs. This agile manufacturing approach is perfectly suited for exclusive, limited-volume releases such as bespoke bicycle lugs and luxury EDC gear.
Veterinary Orthopedics & Implants
We specialize in patient-specific veterinary orthopedics, producing custom TPLO plates and cranial meshes with exceptional biocompatibility. Our engineered porous lattice structures promote optimal osseointegration, available on-demand to support independent veterinary clinics.
Application Cases

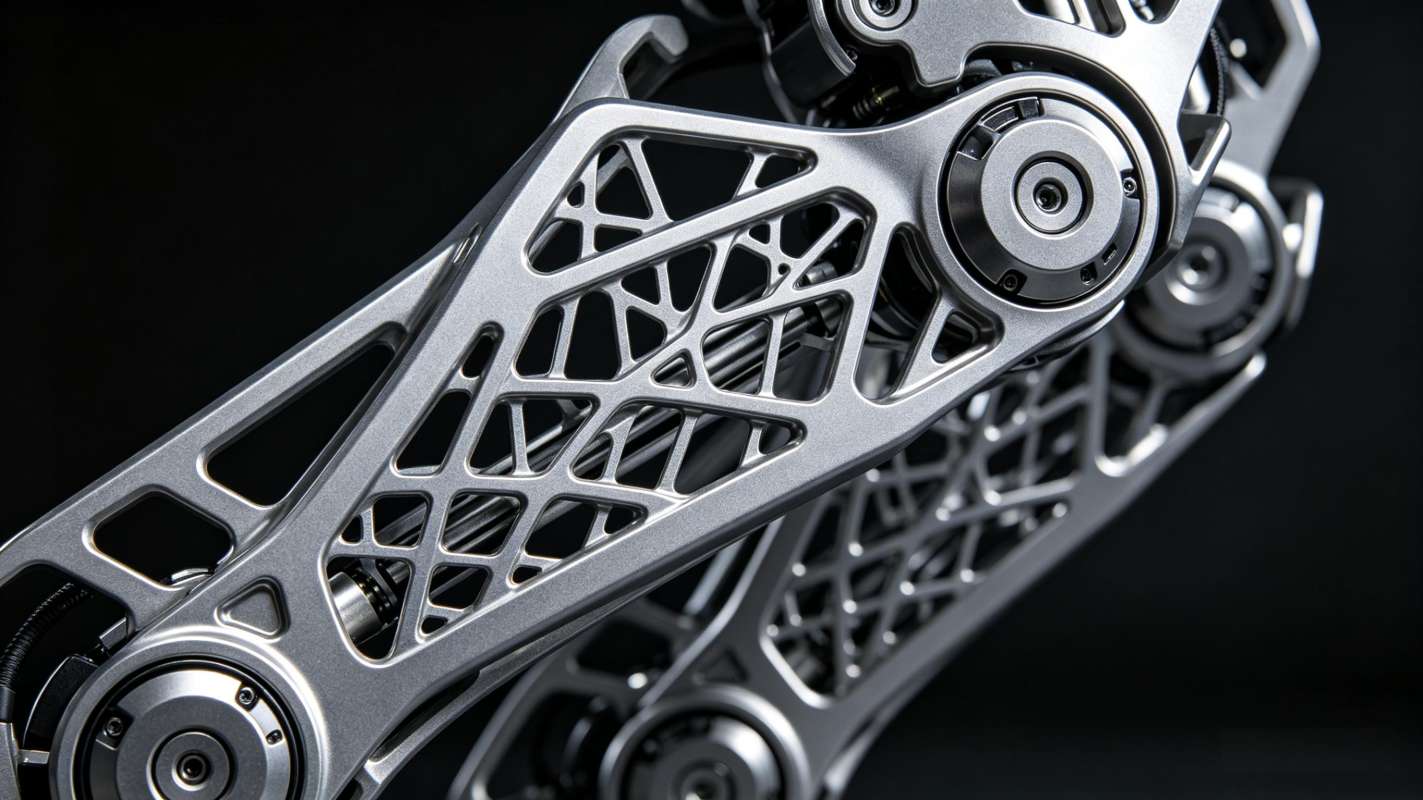

Topology-Optimized Robotic Lower Leg Link
Engineered to minimize distal mass and withstand dynamic ground reaction forces in advanced bipedal and quadrupedal robotic systems.
Core Advantages
- Material: Ti6Al4V
- Industry: Humanoid Robotics, Quadrupedal Systems, Powered Exoskeletons
- Distal Mass Reduction: Applies topology optimization to decrease lower limb mass, lowering rotational inertia and corresponding torque demands on actuators during the swing phase.
- Dynamic Load Tolerance: Utilizes the specific strength and fatigue properties of titanium to accommodate cyclic impact loads and bending moments during locomotion.
- System Integration: Incorporates internal channels for cable routing and specific mounting interfaces for mechanical tendons, reducing external snag risks and assisting assembly.

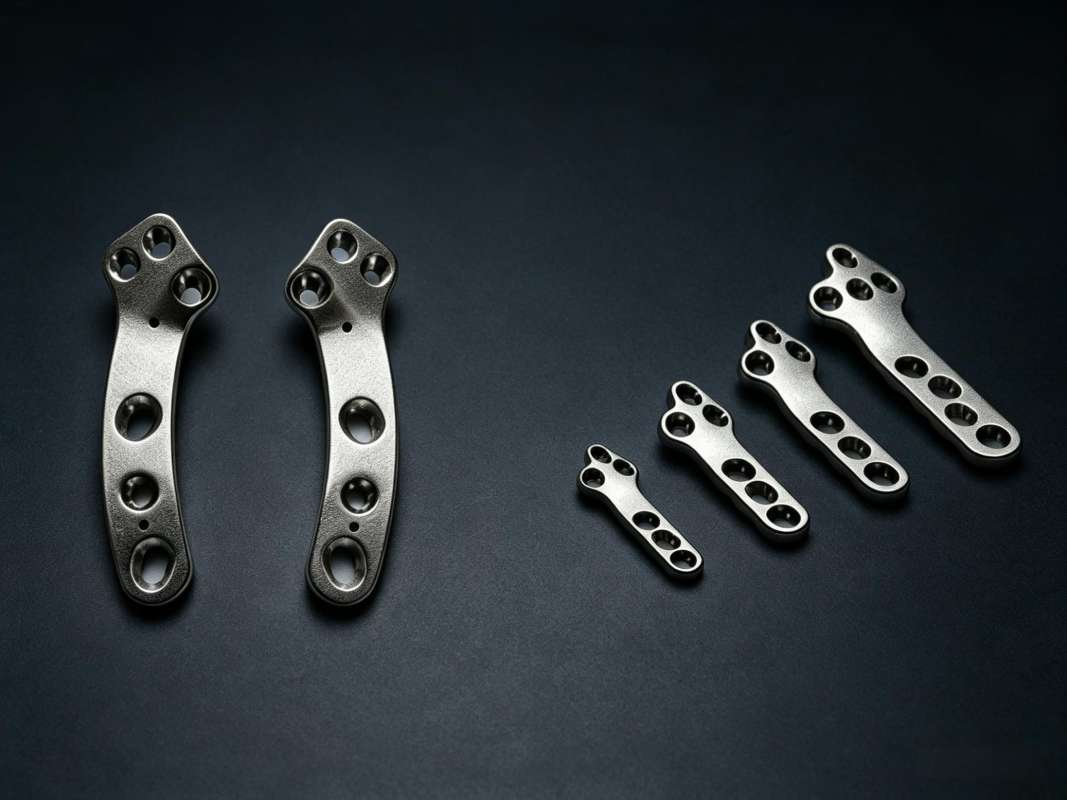

Custom TPLO Plates & Orthopedic Implants
Designed for patient-specific anatomical fit and osteointegration in veterinary orthopedics.
Core Advantages
- Material: Ti6Al4V
- Industry: Veterinary Orthopedics, Animal Healthcare
- Patient‑Specific Fit: Manufactured utilizing CT scan data to match individual bone geometry, reducing operative time and bypassing the need for intraoperative plate contouring.
- Trabecular Lattice Integration: Incorporates porous lattice structures on bone‑contacting surfaces to approximate cancellous bone morphology, supporting tissue ingrowth and biomechanical stability.
- Biocompatibility & Fatigue Resistance: Employs medical‑grade titanium for an optimal strength‑to‑weight ratio, accommodating dynamic loads in veterinary applications with established biocompatibility.

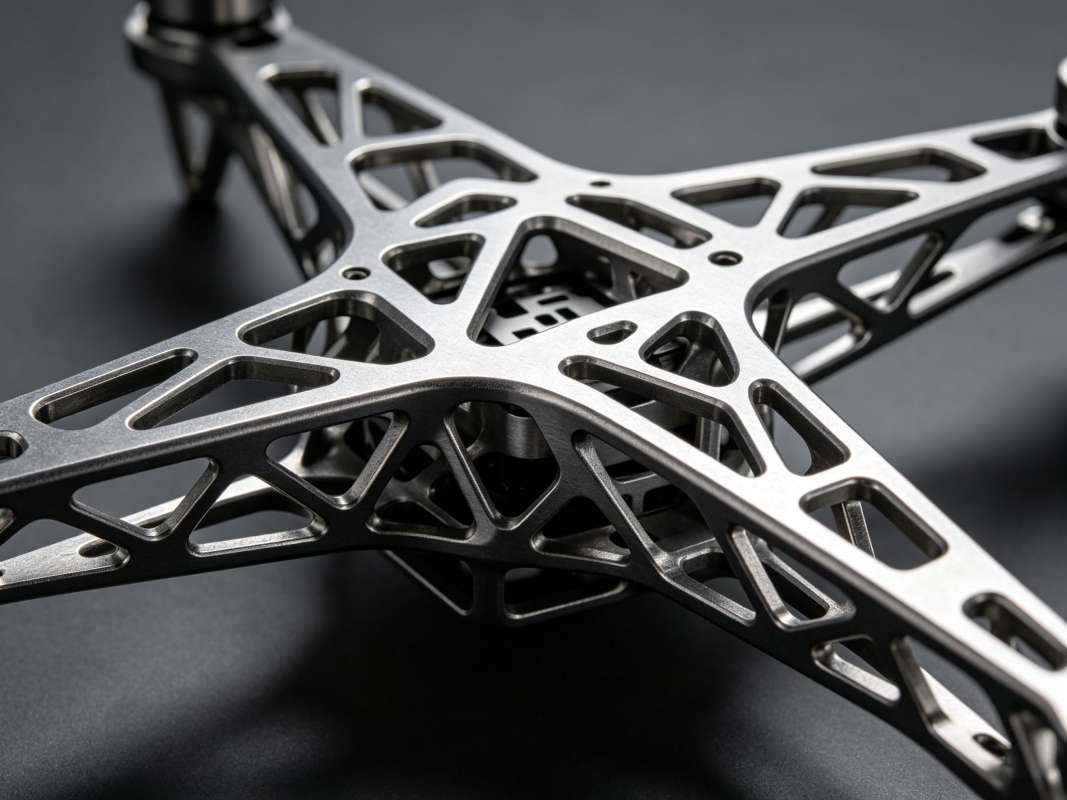

Topology-Optimized UAV Structural Bracket
Engineered to balance load-bearing requirements and weight reduction in unmanned aerial systems.
Core Advantages
- Material: Ti6Al4V
- Industry: Commercial UAVs, Industrial Inspection, Aerial Surveying
- Mass Reduction: Uses topology optimization to remove nonessential material along load paths, reducing part mass while satisfying required static and dynamic yield strengths.
- Part Consolidation: Combines multiple separate mounting bases and frames into a single printed component, reducing fastener count and mitigating assembly tolerance stack‑up.
- Fatigue Performance: Optimizes internal stress distribution to avoid geometric stress concentrations common in conventional machining, maintaining structural reliability under cyclic flight vibrations.

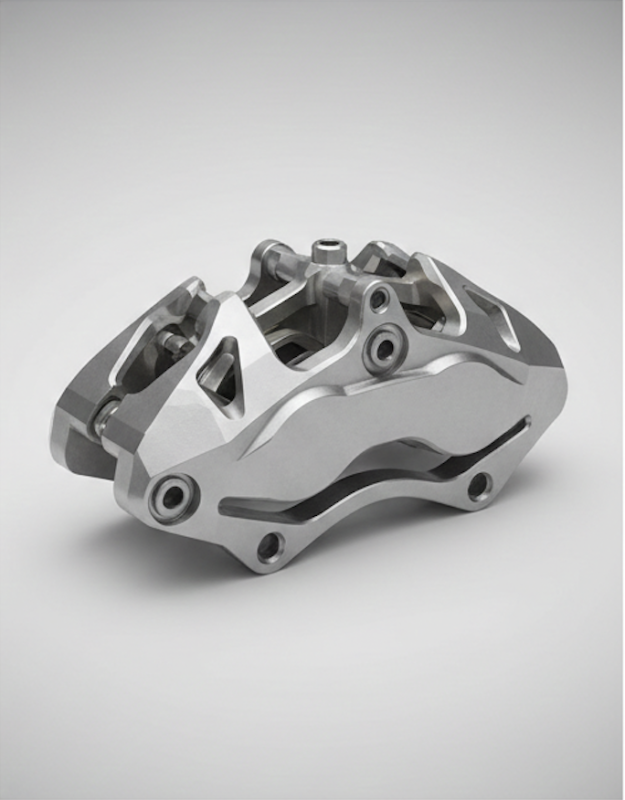

Brake Calipers
Extreme lightweighting for unsprung mass reduction in racing.
Core Advantages
- Material: Ti6Al4V
- Industry: Racing
- Core Design : Uses bionic topology optimization to remove all excess material while maintaining maximum stiffness against caliper expansion.
- Fluid Dynamics : Integrates internal hydraulic fluid channels directly into the caliper body, eliminating external piping and potential damage points.
- Performance: Improves braking response and cooling (via air ducts printed into the structure) while reducing wheel assembly weight.

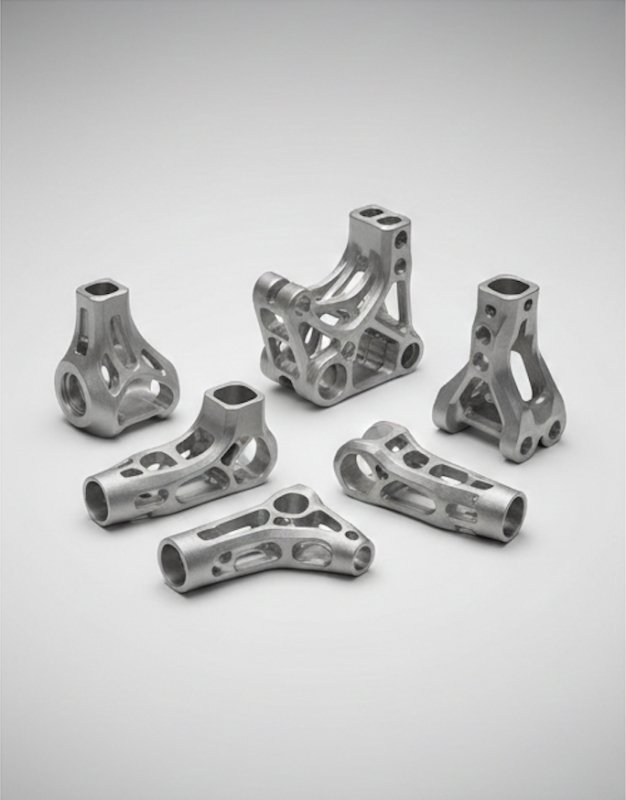

Topology-Optimized Frame Nodes
Customized structural nodes (Head Tubes, Dropouts) for bespoke bicycle frames.
Core Advantages
- Material: Ti6Al4V
- Industry: Cycling & Micromobility
- Core Design : Generates material distribution based strictly on load paths.
- Customization : Allows for adjustments in geometry (angles, dimensions) without the need for expensive molds, enabling perfect rider fit.
- Workflow: Simplifies frame building by providing precise "lugs" that connect standard tubes, reducing welding distortion.

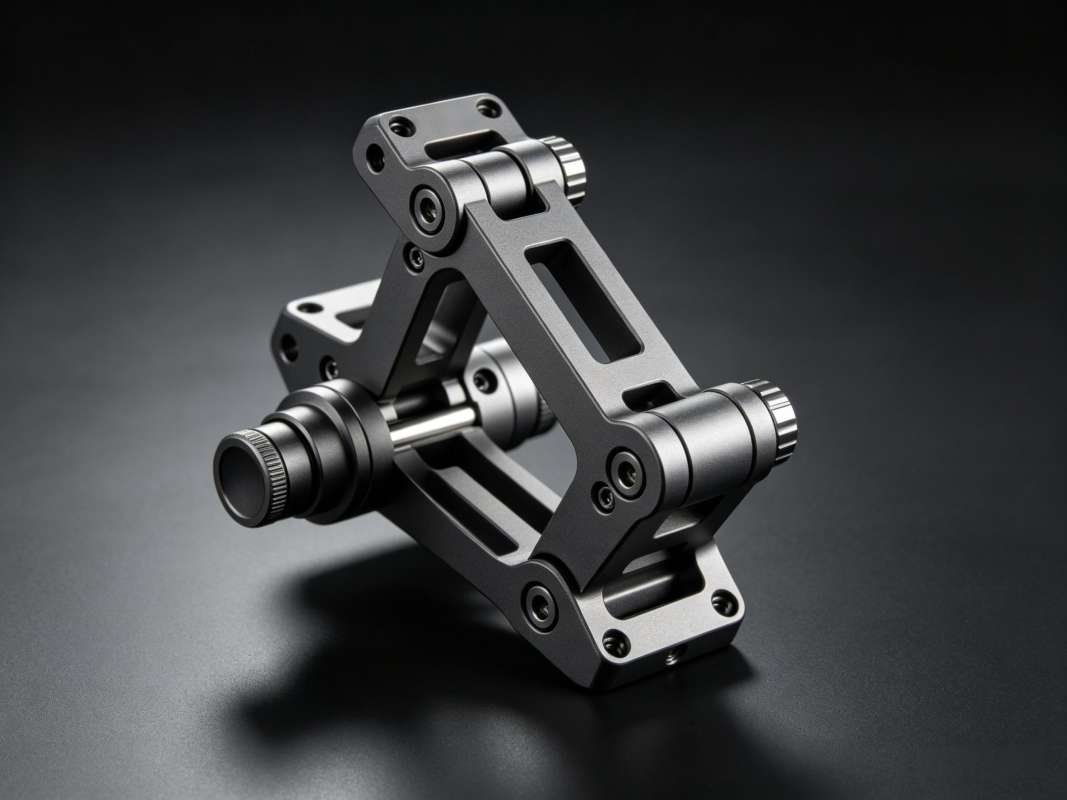

High-End Optical Precision Bracket
Optimized for structural stability and vibration damping in high‑precision optical and laser systems.
Core Advantages
- Material: Ti6Al4V
- Industry: Semiconductor Manufacturing, Satellite Imaging, Medical Optics
- Topology & Stiffness Optimization: Utilizes advanced topology optimization to improve the stiffness‑to‑weight ratio, mitigating micro‑deformation under operational loads and maintaining optical alignment.
- Vibration Attenuation: Integrates internal lattice structures within the bracket to dissipate high‑frequency vibrations, aiding the stability of sensitive lenses and mirrors.
- Thermal Management: Supports the integration of conformal cooling channels or symmetrical designs for uniform heat distribution, reducing thermally induced structural distortion.

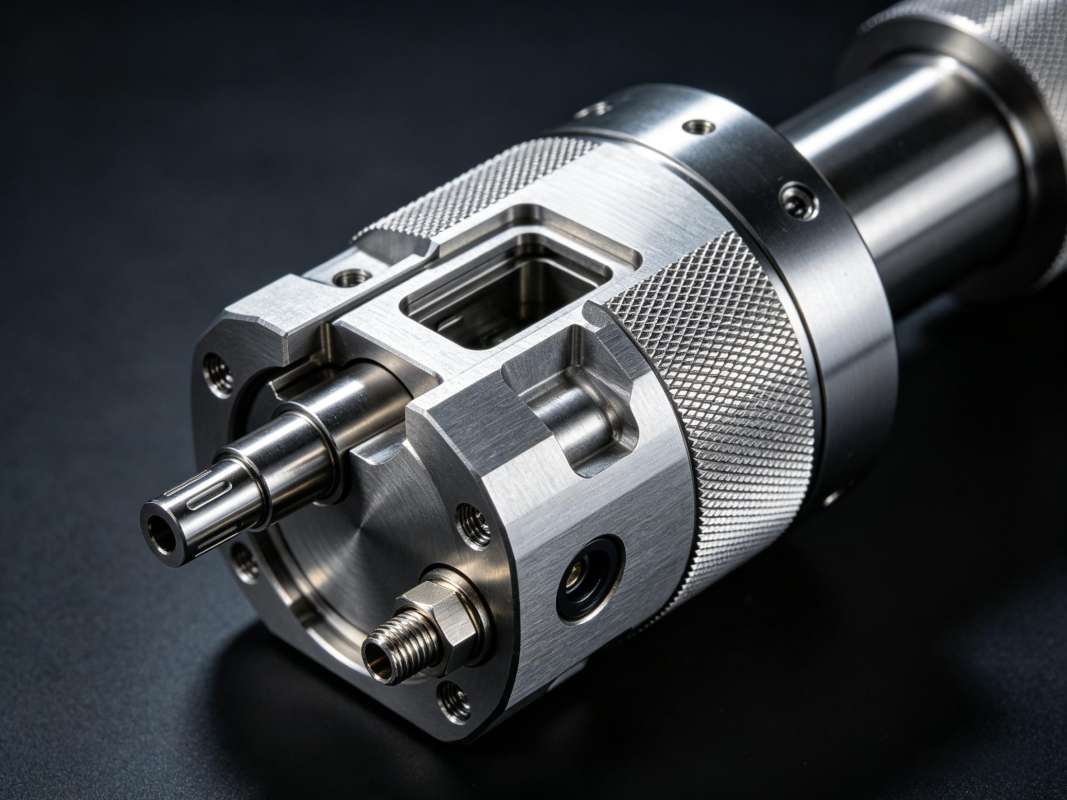

High-Pressure Microreactor
Designed for intensified chemical synthesis, facilitating efficient heat and mass transfer under high-pressure conditions.
Core Advantages
- Material: Ti6Al4V
- Industry: Pharmaceuticals, Fine Chemicals, Advanced Materials Synthesis
- Micro‑Channel Integration: Produces 3D micro‑fluidic networks with high surface‑to‑volume ratios to optimize reaction kinetics and mixing efficiency.
- Monolithic Pressure Containment: Single‑piece construction eliminates the need for joints and gaskets, enhancing the reliability of pressure containment for hazardous chemicals.
- Thermal Regulation: Intertwines reaction channels with heating or cooling circuits in a compact footprint, allowing for regulated temperature control and mitigation of thermal runaway.

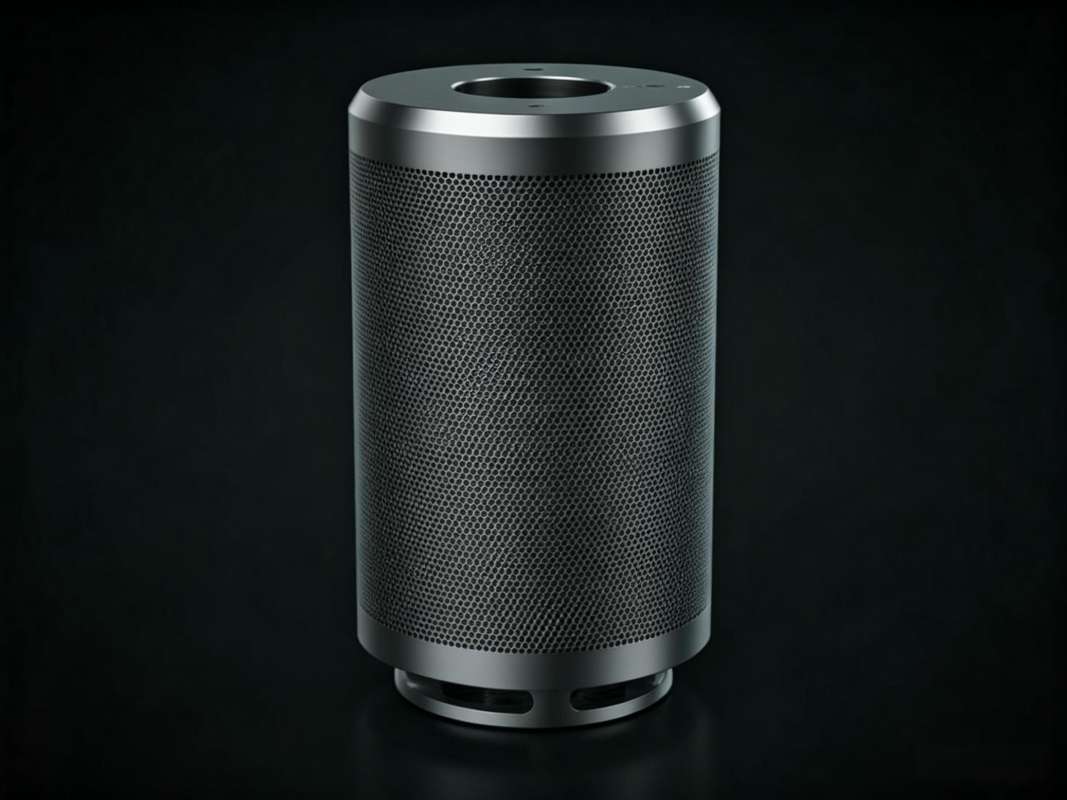

Deep-Sea Hydrophone Housing
Optimized for hydrostatic pressure resistance and acoustic transparency in deep‑ocean environments.
Core Advantages
- Material: Ti6Al4V
- Industry: Marine Exploration, Defense, Offshore Oil & Gas
- Monolithic Structural Integrity: Replaces multi‑part assemblies with a single‑piece structure, minimizing potential leakage points and enhancing reliability under deep‑sea hydrostatic loads.
- Acoustic Response Optimization: Supports the fabrication of variable‑thickness walls and internal baffling to manage acoustic response and sensor directivity.
- Corrosion Resistance & Mass Reduction: Utilizes titanium for saltwater durability and topology optimization to reduce payload mass, assisting in buoyancy management.
