Automotive Heat Exchangers & High-Performance Racing Components
Why 3D Printing for Automotive Heat Exchangers & High-Performance Racing Components
Zero-Leak Monolithic Design
Eliminates multi-part brazing. Single-piece construction physically eradicates joint failures and high-pressure leak paths under extreme thermal cycling and vibration.
Maximized Thermal Efficiency
Bypasses conventional machining limits. Enables complex micro-channels and conformal cooling geometries to maximize active surface area and fluid mixing in a compact footprint.
Extreme Lightweighting
Combines high-performance AlSi10Mg with topology optimization. Achieves ultra-thin walls (down to 0.3mm) to strip away excess weight without compromising structural integrity.
Proven Applications: Heat Exchangers & Racing Components

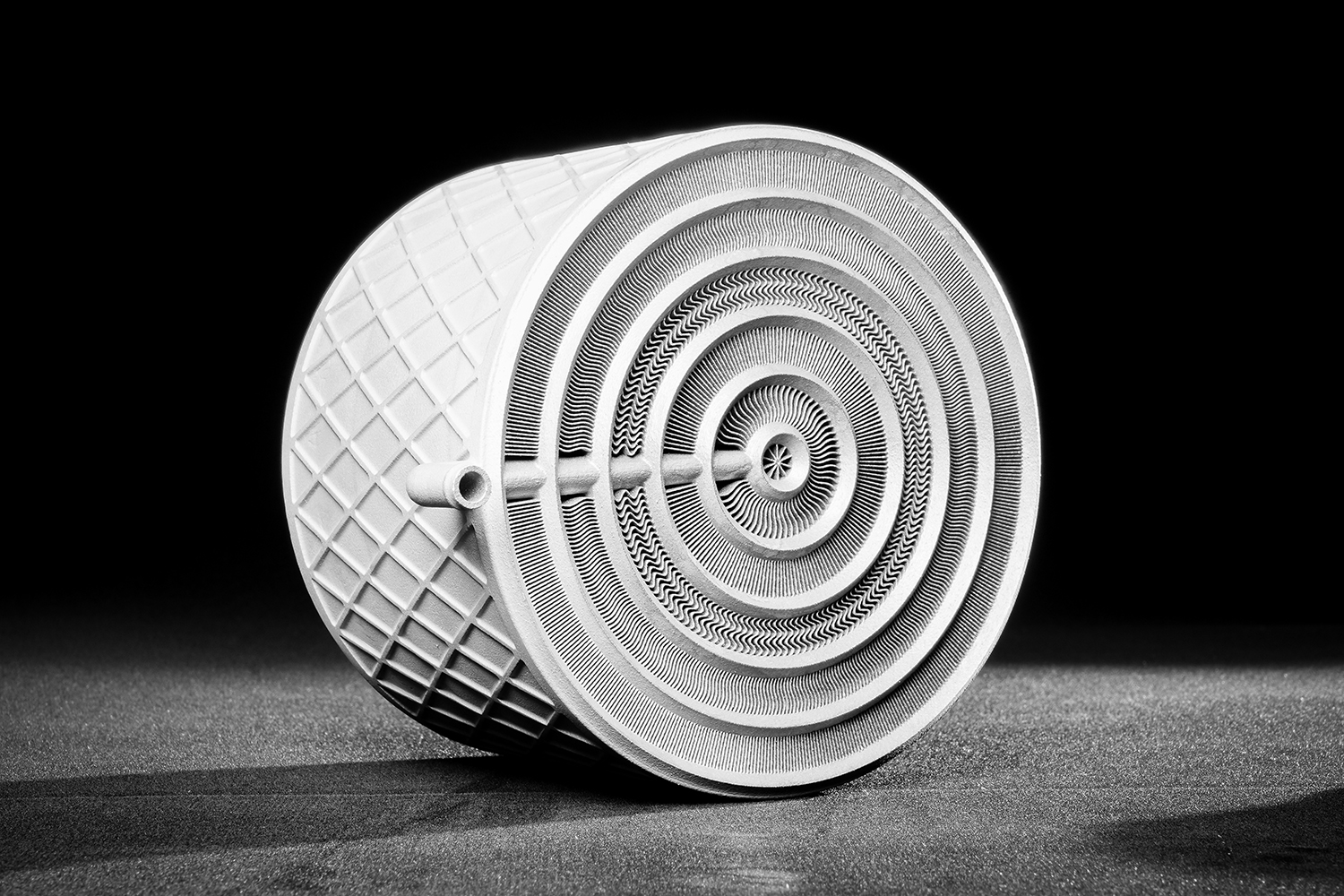

Heat Exchangers
Lightweight, high-strength heat exchangers for automotive applications, overcoming conventional conventional brazing limits.
Core Advantages
- Material : High–strength Aluminum Alloy, offering a balance of low weight and good thermal conductivity.
- Structure: Monolithic printing. Features extremely thin walls (down to 0.3mm) and complex internal lattices for fluid mixing.
- Advantage: Eliminates the risk of leakage at joints common in brazed aluminum exchangers and allows for topology optimization to reduce weight.
Transmission & Gearbox Components
Lightweight housings featuring integrated complex oil circuits for superior lubrication.
Core Advantages
- Material: AlSi10Mg
- Industry: Automotive & EV
- Core Design: Embeds conformal oil passages directly inside the housing walls. These curved channels guide oil smoothly around corners, impossible to achieve with straight–line drilling.
- Weight Reduction: Applies topology optimization to remove material from non–load–bearing areas, reducing housing weight while maintaining structural stiffness.
- Performance: Improves lubrication efficiency by optimizing flow paths to critical gears and bearings, reducing pressure drop and pump energy consumption.

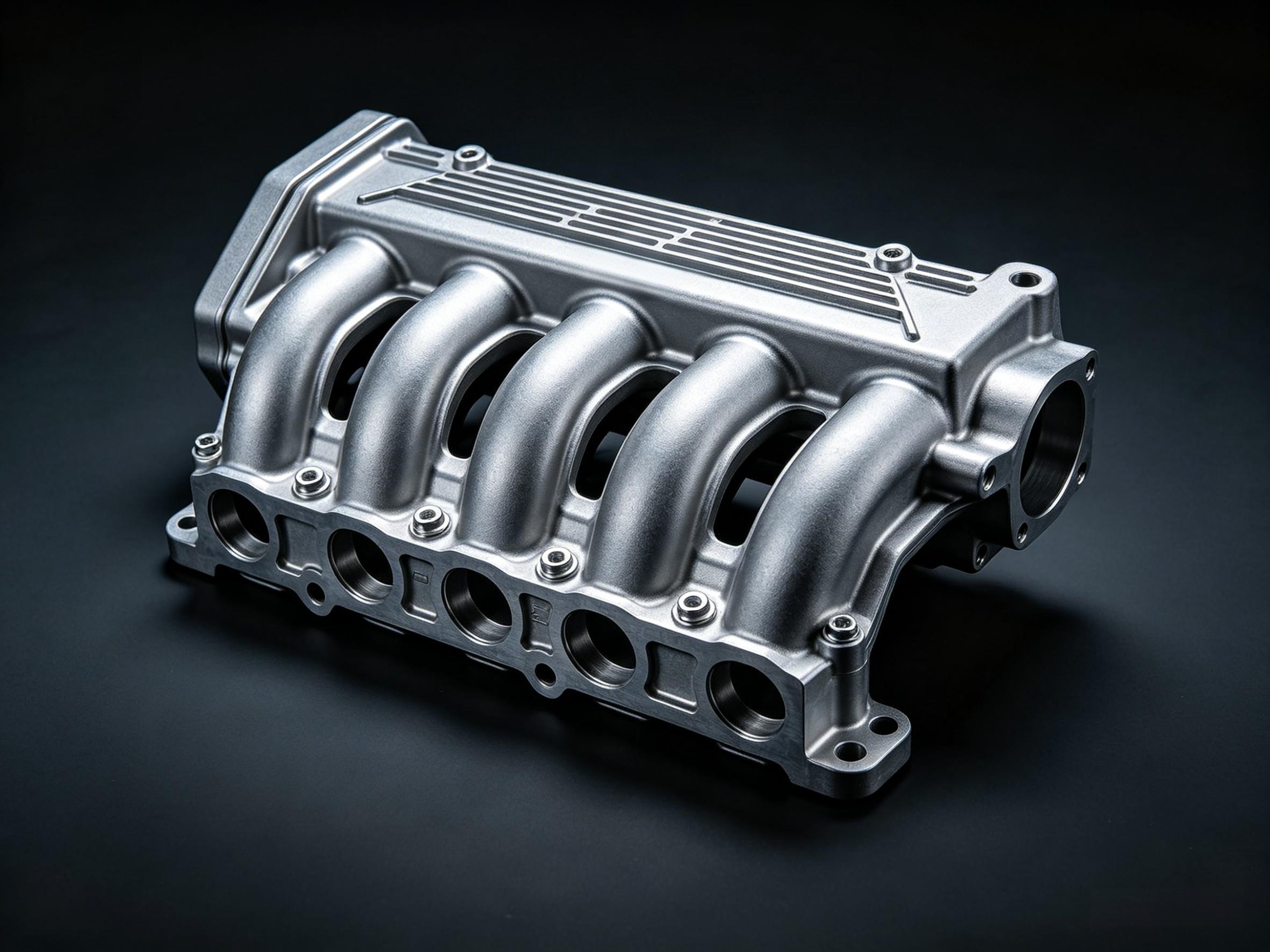

Custom Intake Manifold
Developed for balanced airflow distribution and volumetric efficiency in internal combustion engines.
Core Advantages
- Material: AlSi10Mg
- Industry: Motorsports, High–Performance Automotive, Custom Tuning
- Fluid–Dynamic Optimization: Supports asymmetric runner and plenum designs based on CFD data, bypassing casting draft angle constraints to improve air distribution equality.
- Part Consolidation: Integrates features such as injector ports and velocity stacks into a single structure, removing weld seams and potential vacuum leak points.
- Packaging & Lightweighting: Uses variable–thickness walls to reduce mass while adapting to constrained engine bay envelopes.
Manufacturing Capabilities & Trust: Industrial Aluminum AM for Heat Exchangers
Industrial-Scale AM Capability
Equipped with over 100 metal 3D printing systems , we eliminate production bottlenecks and guarantee rapid turnaround times for both complex prototypes and scalable low-volume production.
End-to-End Turnkey Solution
We simplify your global supply chain by handling everything under one roof, from advanced metal printing to precision post-processing and rigorous quality assurance.
Expert DfAM Engineering Guidance
Our in-house additive manufacturing experts give guidance with your team to optimize your CAD models for printability, extreme weight reduction, and optimal fluid dynamics before production begins.
Rigorous Quality Assurance
We guarantee monolithic, leak-free performance and flawless internal structures through comprehensive pressure testing , strict surface roughness (Ra) control and beyond.
How to Upload Your 3D CAD for an Instant Quote
See how fast and simple it is to get a quote for 3D printing using the Addireen Instant Quoting Engine.
Download Expert Design Guide
Material Capabilities
Pure Copper
Pure Copper printed via Green Laser technology offers exceptional electrical and thermal conductivity. It overcomes the high reflectivity challenges of traditional lasers, delivering high-density parts ideal for heat exchangers, induction coils, and EV components.
CuSn10
CuSn10 is a copper-tin alloy known for its high strength, elasticity, and excellent corrosion resistance. It is widely used in marine applications, artistic jewelry, and functional prototypes requiring durability and moderate conductivity.
CuCrZr
CuCrZr is a heat-treatable copper alloy that retains high strength and conductivity at elevated temperatures. It is the preferred material for rocket engine thrust chambers and high-performance heat sinks requiring thermal stability.
AlSi10Mg
AlSi10Mg is a lightweight aluminum alloy with excellent strength-to-weight ratio and thermal properties. It is widely used for complex geometries in automotive and aerospace structural parts.
6061
Al 6061 offers superior machinability and mechanical properties compared to standard casting alloys. Renowned for its excellent anodizing and coloring capabilities, it is ideal for structural parts requiring precision and premium surface finishes.
Ti6Al4V
Ti6Al4V is the benchmark titanium alloy for additive manufacturing, valued for its exceptional strength-to-weight ratio, biocompatibility, and corrosion resistance. Essential for aerospace components and medical implants.
